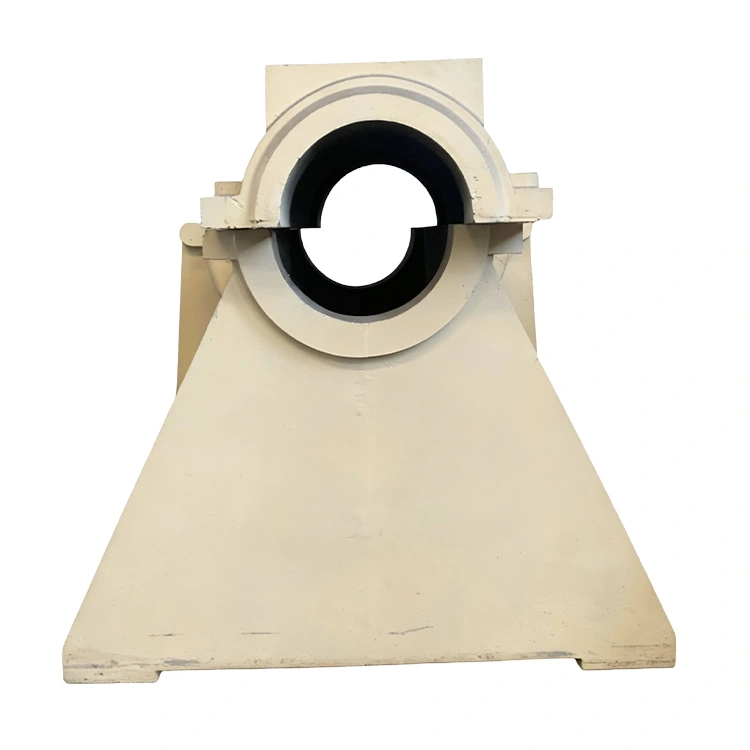

Horizontal Centrifugal Slurry Pump Casing

The quality horizontal centrifugal slurry pump casing manufactured by Shengjian Fanrong is mainly made of gray cast iron or ductile cast iron, which has high density and strong stability, and supports customized designs based on customer drawings.

What are the benefits of using this product?

1. The durable horizontal centrifugal slurry pump casing uses ductile cast iron material, improving wear resistance.

2. Strength and toughness: Its tensile strength can reach over 600MPa (such as QT600-3 grade), with an elongation of ≥3%, possessing high resistance to multiple impacts, suitable for bearing dynamic and static loads during slurry pump operation.

3. Vibration reduction and stability: The vibration damping of ductile cast iron is between steel and gray cast iron, which can reduce pump body vibration, improve equipment operation stability, and reduce noise.

Product Application Scenarios

1. Metallurgy: Transporting high-temperature solid waste and corrosive slurries such as blast furnace slag, converter slag, metallurgical furnace slag, and molten slag.

2. Power: Transporting coal slurry, ash, and circulating water, such as hydraulic ash removal and desulfurization system ash treatment in thermal power plants.

3. Building Materials: Transporting slurries such as cement, sand, and soil, used in building foundation construction and concrete transportation.

4. Coal: Transporting coal slime, heavy medium suspension, and coal washing slurry, used in coal slime and heavy medium coal washing transportation in coal preparation plants.

5. Chemical Industry: Transporting corrosive media containing solid particles, chemical slurries, and crystal-containing liquids, suitable for chemical production processes.

6. Dredging and River Management: Transporting mud, sand, and silt, used in river dredging, lake desilting, and dredging operations.

7. Municipal and Environmental Protection: Transporting liquids containing suspended particles such as sewage, wastewater, sludge, and mortar, used in urban sewage treatment and environmental protection waste treatment.

What are the precautions for installing this product?

1. Pre-installation Inspection: Verify the equipment model, parameters, and component integrity of the advanced horizontal centrifugal slurry pump casing. Ensure all technical documents are complete and carefully read the operation manual to understand the operating procedures.

2. Pump body installation: Use the secondary grouting method for fixing, adjust the shims to ensure the pump body is level (error ≤ 0.1mm/m), and securely fasten the anchor bolts.

3. Pipe connection: The inlet and outlet pipelines must be independently supported to prevent weight from acting on the pump body; the suction pipe diameter should be ≥ the pump inlet diameter, and the outlet pipe diameter should be ≥ the pump outlet diameter, with the regulating valve located at the outlet.

4. Pump priming and venting: Before starting, the pump needs to be primed (filled with liquid) and vented to avoid dry running; the inlet valve should be fully open, and the outlet valve closed before starting.

5. Shutdown and maintenance: Close the outlet valve before shutting down the pump; in winter, drain the liquid from the pump to prevent freezing; regularly check the oil level and quality, and replace worn parts promptly.

6. Do not operate without water, avoid prolonged operation at excessively low flow rates to prevent cavitation; ensure the motor is properly grounded and the power supply meets the requirements specified on the nameplate.
